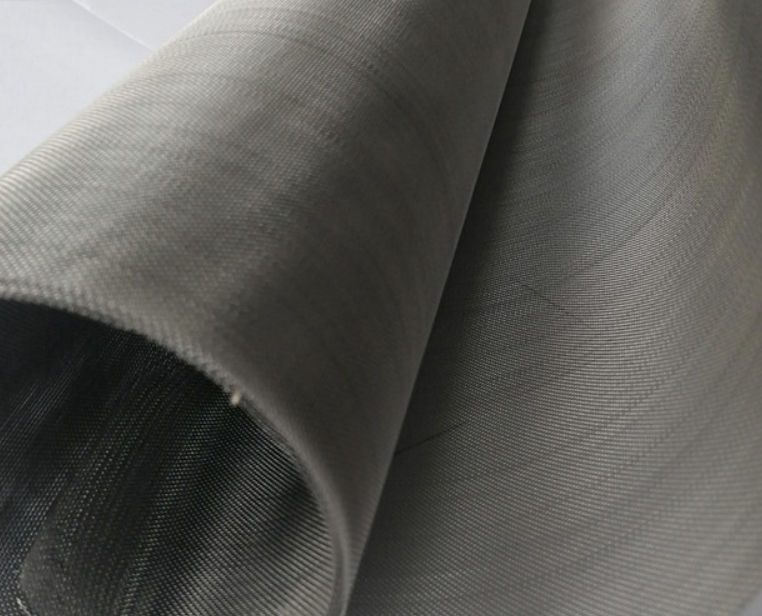

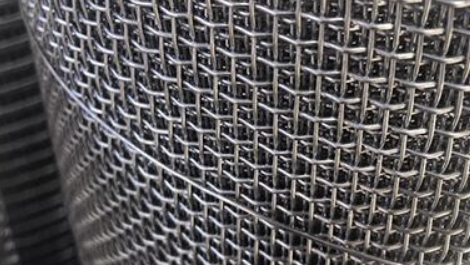

Micron Level Accuracy Woven Wire Screen Cloth

Brand Name:	JUN HENG
MOQ:	1000 square meters
Price:	1.8-3.2USD
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100,000 square meters per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Product Name:

Woven Mesh Screen

Keywords:

Woven Mesh Screen

Material:

65Mn Spring Steel

Plating:

Zn-5%Al Galfan®

Aperture:

1.2mm-10mm

Wire Diameter:

0.18mm-0.8mm

Packaging Details:

Non-pesticide-treated pallets

Highlight:

accuracy woven wire screen cloth

accuracy woven wire mesh screens

Pharmaceutical Grading woven mesh screen

Product Description

Micron-level accuracy Woven Mesh Screen pharmaceutical grading

Woven Mesh Screen Product overview

Our patented hexagonal lattice (120° symmetry) with warp-wise twin-wire ribs delivers 300% higher crush resistance. Aggregates roll out freely with zero right-angle jamming, achieving >95% throughput in C40 concrete mixing vs. 85% for square meshes. Aperture deformation <0.5% after 12hr continuous operation.

Woven Mesh Screen Product features

structural stability:6-axis load distribution,850MPa compressive strength
Anti-blocking efficiency:＞45° sliding angle,Reduce downtime by 90%
Grading accuracy control:±1mm aperture tol.,Secure aggregate ratio compliance

Woven Mesh Screen Application scenarios

Coarse aggregate screening at commercial concrete mixing stations5-31.5mm stone crushing pass rate 98%
Machine-made sand fine particle separation0.15-5mm sand sieve residue ≤8%
RCC dam aggregate gradingReduce the risk of segregation in large concrete volumes

Woven Mesh Screen Detailed specifications

Material	65Mn spring steel
plating	Zn-5%Al Galfan®
Aperture range	3mm / 5mm / 8mm / 12mm / 20mm
Screen thickness	3.0 / 4.5 / 6.0mm
Compressive strength	850 MPa (Yield), 1100 MPa
dynamic fatigue life	>2,000,000 times
Connection method	Bolt-on bead / hook-edge tensioning
